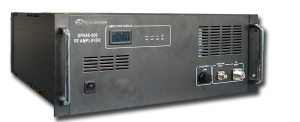

SPA66-500 P波段功率放大器 P Band Amplifier

SPA66-500

P波段功率放大器 P Band AmplifierSPA66-500

工作频率 0.5 GHz

Working frequency: 0.5 GHz

  • 可用于直线加速器次谐波腔
    It can be used in subharmonic cavity of linear accelerator
  • 输出功率可达4000W
    The output power can reach 4000W
  • 高稳定性
    High stability
  • 标准19英寸4U机箱
    Standard 19-inch 4U case

SPA66-500 典型指标

型号
Part Number
最低工作频率
FL(GHz)
最高工作频率
FU(GHz)
典型增益
Gain (dB)
输出功率
Psat
(W)
占空比脉宽射频输入动态范围
SPA66-5000.480.86664000≤10%≤100us20dB
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

SPA66-500电性能指标

技术参数Symbol单位Units典型值Typ
微波脉冲平顶宽度usec2~20μs usec可调
射频功率输出PL(1dB)W可定制至5000
输出功率vs输入功率
动态范围
dB15
脉冲前沿usec0.05
脉冲后沿usec0.1
脉内平顶<0.2%(RMS)
脉内相移°<1° (RMS)
相位调节对幅度稳定性dBc<0.2
微波脉冲前沿抖动ns<5
射频功率稳定度<0.1%
相位稳定度<0.05°(RMS)
漏脉冲<1/10^6
