8毫米收发系统 Millimeter-wave transceiver system

8毫米收发系统65

Millimeterwave transceiver system

工作频率  32.0~38.0 GHz

Working frequency: 32.0 ~ 38.0ghz

适用于托卡马克等离子体装置

Suitable for tokamak plasma device

  • 毫米波频段
    Millimeter wave band
  • 4频道信号采用相同通道同步工作
    Channel 4 signal USES the same channel to work synchronously
  • 多达128路独立的I/Q接收信号接口
    Up to 128 independent I/Q receiving signal interfaces
  • 接收信号幅度可单独调节
    The receiving signal amplitude can be adjusted separately
  • 标准19英寸机箱
    Standard 19-inch case

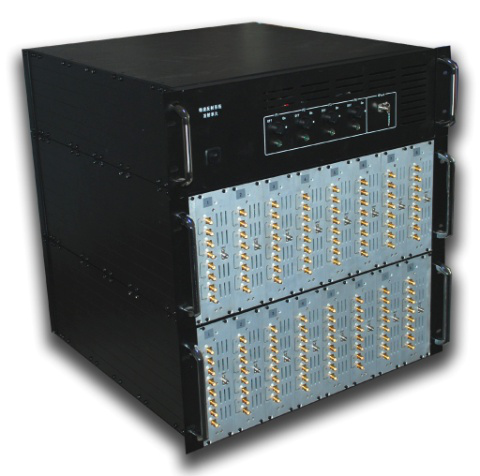

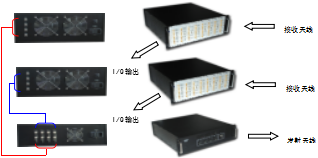

8毫米收发系统由一台发射单元、两台接收单元组成,各单元采用独立19英寸机箱,通过高频微波电缆连接,直接产生多个频率的毫米波发射信号,并同时将不同频率多个通道接收信号独立下变频至I/Q输出。

8 mm transceiver system by a transmission unit, two units, each unit adopts independent 19 inch case, through the high frequency microwave cable connection, directly produce multiple frequency millimeter wave signal, and at the same time, the different frequency multiple channel signals under the independent variable frequency to the I/Q output.



66 67











接收单元 Receiving unit

  • 每台接收机具备8个独立的通道
    Each receiver has eight separate channels
  • 每个通道微波接收端口独立,同步接收4频道信号
    Each channel microwave receiving port is independent and receives 4 channel signal synchronously
  • 各频道抗扰抑制:优于35dB。
    Channel interference rejection: better than 35dB.
  • I/Q信号视频带宽:500kHz
    Video bandwidth of I/Q signal: 500kHz
  • I/Q信号视频增益:0-20dB可调
    Video gain of I/Q signal: 0-20db tunable

发射单元  Launch unit

  • 四频道同步工作
    Channel 4 works synchronously
  • 工作频率覆盖:32.0~38.0GHz
    Working frequency coverage: 32.0 ~ 38.0ghz
  • 四频道独立选通开关,可单独工作
    4 channel independent selector switch, can work independently
  • 每个频点的功率调节动态范围:15dB
    Power adjustment dynamic range at each frequency point: 15dB
  • 发射微波相位噪声:优于-80dBc/Hz@10kHz
    Transmitting microwave phase noise: better than -80dbc/hz@10khz

说明 Notes

该产品为定制设计产品,详细细节请联系厂家

This product is custom-designed. Please contact the manufacturer for details
