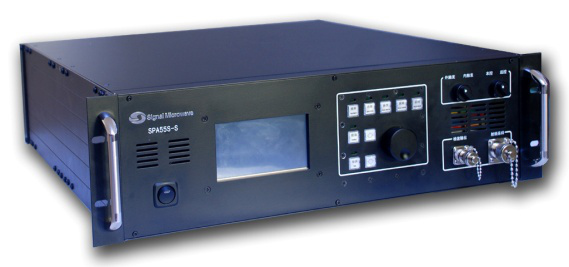

S波段激励源 S Band RF Driver

S波段激励源

 S Band RF Driver  3

工作频率  2.83.0GHz

Working frequency: 2.8-3.0GHz

  • 适用于新一代辐照加速器、医疗加速器和科研应用
    It is applicable to the new generation of radiation accelerators, medical accelerators and scientific research applications
  • 适合不同系统方案有多种型号可选
    It is suitable for different system schemes
  • 标准19英寸3U机箱
    Standard 19-inch 3U case
  • 供电电压 AC 220V
    Supply voltage AC 220V

S波段激励源典型指标

型号
Part Number
最大输出功率功率调节精度射频频率频率调节精度脉冲宽度调节范围脉冲宽度调节步进
SPA55S-S-A28012851~296111.5~200.1
SPA55S-S-B28012994~300411.5~200.1
SPA57S-S-A50012851~296111.5~200.1
SPA57S-S-B50012994~300411.5~200.1
SPA60S-S-A100022851~296111.5~100.1
SPA60S-S-B100022994~300411.5~100.1
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

S波段激励源典型指标

型号
Part Number
内触发脉冲 频率(Hz)内触发脉冲 频率精度(Hz)外触发脉冲 最大频率(Hz)外触发延时
(us)
外触发延时调节精度(us)远程控制方式
SPA55S-S-A1~600110000~101CAN/LAN
SPA55S-S-B1~600110000~101CAN/LAN
SPA57S-S-A1~600110000~101CAN/LAN
SPA57S-S-B1~600110000~101CAN/LAN
SPA60S-S-A1~200110000~101CAN/LAN
SPA60S-S-B1~200110000~101CAN/LAN
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized



4 5 6



s波段激励源电性能指标

技术参数单位典型值
脉冲前沿usec0.08
脉冲后沿usec0.1
脉内平顶<0.3%(RMS)
脉内相移°<1° (RMS)
射频功率稳定度<0.5%(RMS)
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

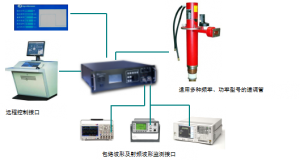

  • 数字化显示屏、数字化操控界面
    Digital display, digital control interface7
  • 输出信号包络波形显示功能
    Output signal envelope waveform display function
  • 内置锁相频率源
    Built-in phase-locked frequency source
  • 内置脉冲触发源
    Built-in pulse trigger source
  • 内、外部触发功能
    Internal and external trigger functions
  • 标准19英寸机箱,内置风冷散热器
    Standard 19-inch case with built-in air cooled radiator
  • 远程控制功能
    Remote control function
