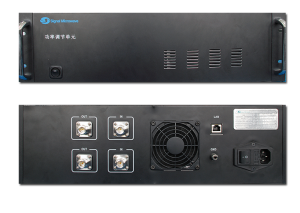

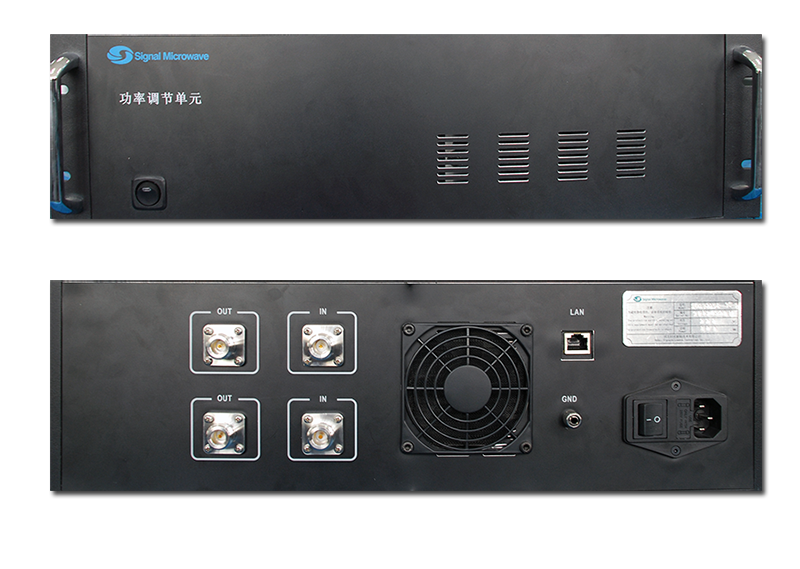

SDAT-P2大功率调节单元 High power attenuator

SDAT-P258

大功率程控衰减器  High power attenuator

工作频率  2-6GHz

Operating frequency: 2-6GHz

  • 适用于加速器固放功率调节
    It is suitable for the solid power adjustment of accelerator
  • 可承载1.5kW峰值功率
    Capable of carrying 1.5kw peak power
  • 抗干扰
    anti-interference
  • 标准19英寸3U机箱
    Standard 19-inch 3U case

SDAT-P2典型指标

型号 model工作频率
Frequency(MHz)
最低
FL
工作频率
Frequency(MHz)
最高
FU
插入损耗 insertion loss
(dB)
功率调节范围 controlling power range
(dB)
功率调节精度power of regulation precision
(dB)
最大连续功率
continuous maximum rating
(W)
最大峰值功率 Maximum peak power
(W)
SDAT-P2200060001300.011001500@1%占空比( duty ratio)100us脉宽(pulse width)
说明 Notes
以上指标为典型值
The above indicators are typical values
  • 2组N型连接器,可提供2通道大功率信号功率调节
    2 sets of N connector, can provide 2 channel high power signal power adjustment
  • 支持LAN远程控制监测方式
    Support LAN remote control monitoring mode
  • 通过精密电机组件实现的机械功率调节功能,具有良好的抗干扰特性
    The mechanical power adjustment function realized by precise motor assembly has good anti-interference characteristics
  • 适用于辐照环境机房的远程功率调节方案
    It is suitable for remote power adjustment scheme of irradiation environment machine room
  • 支持01dB精度的实施功率连续调节功能
    Support 01dB precision to implement continuous power regulation function

说明 Notes

该产品为定制设计产品,详细细节请联系厂家

This product is custom-designed. Please contact the manufacturer for details
