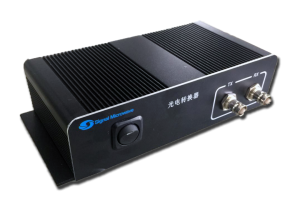

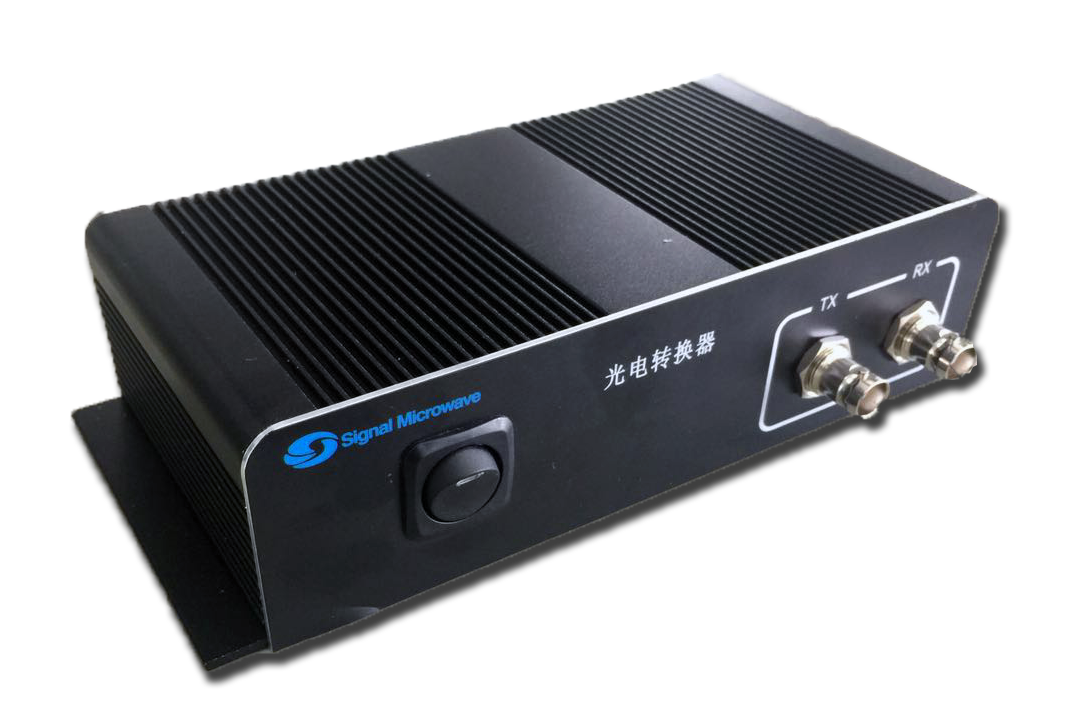

XGD-2光电/电光转换器
XGD-2 photoelectric/electro-optical converter
- 适用于同步脉冲信号的光传输转换
Suitable for optical transmission and conversion of synchronous pulse signal - 极低的抖动误差和延迟
Very low jitter error and delay - 宽适应范围
Wide range of adaptation - 铝合金机壳
Aluminum alloy casing
XGD-2典型指标
| 型号 model | 光信号接口 Optical signal interface | 电信号接口 Electrical signal interface | 适配光纤 Adaptive optical fiber | 最大传输速率 Maximum transmission rate | 响应延时 Response latency | 抖动误差 Jitter error | 功耗 Power consumption |
|---|---|---|---|---|---|---|---|
| XGD-2 | ST | BNC | 62.5/125um | 160Mb | 100ns | <1ns | 1W |
以上指标为典型值
The above indicators are typical values
电-光-电转换 响应延时曲线 响应延时31ns Response delay curve of electro – optical – electrical conversion response is 31ns
接口 Interface：
光-电转换 输出信号曲线 上升沿3ns下降沿3ns 幅度5V The output signal curve of photoelectric conversion goes up along 3ns and down along 3ns and 5V
