SPA55X-B  2X波段功率放大器  X Band Amplifier

工作频率  11.311.5GHz

Working frequency: 11.3 ~ 11.5GHz

  • 适用于X波段直线加速器微波功率源
  • Suitable for X – band linear accelerator microwave power source
  • 输出功率≥500W
  • Output power is greater than 500W
  • 标准19英寸3U机箱
  • Standard 19-inch 3U case
  • 供电电压 AC 220V
  • Supply voltage AC 220V

spa55x-b典型指标

型号
Part Number
最低工作频率
lowest working frequency(GHz)
最高工作频率
highest working frequency(GHz)
典型增益
Gain (dB)
输出功率
Psat(dBm)
占空比脉宽射频输入动态范围
SPA55X-B113001150050-60可调300≤1%≤20us20dB
SPA57X-B113001150052-62可调500≤1%≤20us20dB
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

SPA55X-B电性能指标

技术参数Symbol单位Units典型值Typ
微波脉冲平顶宽度usec1.4-6usec可调(可定制25us)
射频功率输出PL(1dB)W500
输出功率vs输入功率
动态范围
dB20
脉冲前沿usec<50
脉冲后沿usec<70
脉内平顶<0.2%(RMS)
脉内相移°<1° (RMS)
微波脉冲前沿抖动ns<5
射频功率稳定度<0.05%
相位稳定度<0.04°(RMS)
附加相位抖动fs<10
漏脉冲<1/10*6
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized


SPA57C-B1

C波段功率放大器  C Band Amplifier

工作频率  5.65.8GHz

Operating frequency: 5.6 ~ 5.8GHz

  • 适用于C波段直线加速器微波功率源
    Suitable for C band linear accelerator microwave power source
  • 输出功率≥450W
    Output power is greater than 450W
  • 标准19英寸3U机箱
    Standard 19-inch 3U case
  • 供电电压 AC 220V
    Supply voltage AC 220V

SPA57C-B典型指标

型号
Part Number
工作频率
Frequency(MHz)
工作频率
Frequency(MHz)
典型增益
Gain (dB)
输出功率
Psat
(W)
占空比脉宽射频输入动态范围
SPA57C-B5600580052-62可调450≤10%≤25us20dB
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

SPA57C-B电性能指标

技术参数Symbol单位Units典型值Typ
微波脉冲平顶宽度usec1.4~6 usec可调(可定制25us)
射频功率输出PL(1dB)W450
输出功率vs输入功率
动态范围
dB20
脉冲前沿usec<50
脉冲后沿usec<70
脉内平顶<0.2%(RMS)
脉内相移°<1° (RMS)
微波脉冲前沿抖动ns<5
射频功率稳定度<0.04%
相位稳定度<0.02°(RMS)
附加相位抖动fs<10
漏脉冲<1/10*6
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

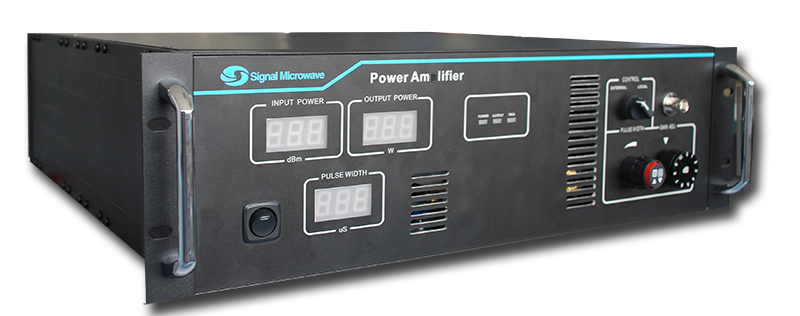

SPA55S-B 71

S波段功率放大器  S Band Amplifier

工作频率  2.83.0GHz

Working frequency: 2.8-3.0GHz

  • 适用于直线加速器微波功率源
  • Suitable for linear accelerator microwave power source
  • 输出功率≥300W
  • Output power is greater than 300W
  • 标准19英寸3U机箱
  • Standard 19-inch 3U case
  • 供电电压 AC 220V
  • Supply voltage AC 220V

SPA55S-B典型指标

型号
Part Number
最低工作频率
lowest working frequency(MHz)
最高工作频率
highest working frequency(MHz)
典型增益
Gain(dB)
输出功率
Psat(W)
占空比脉宽射频输入动态范围
SPA55S-B2800300050-60可调300≤10%≤25us20dB
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

SPA55S-B电性能指标

技术参数Symbol单位Units典型值Typ
微波脉冲平顶宽度usec1.4 - 6usec可调(可定制25us)
射频功率输出PL(1dB)W300
输出功率vs输入功率
动态范围
dB20
脉冲前沿ns<50
脉冲后沿ns<70
脉内平顶<0.2% (RMS)
脉内相移<1° (RMS)
微波脉冲前沿抖动ns<5
射频功率稳定度<0.035% (RMS)
相位稳定度<0.015°(RMS)
附加相位抖动fs<10
漏脉冲<1/106

  • 输出功率数显监测
  • Output power digital display monitoring
  • 输入功率数显监测
  • Input power digital display monitoring
  • 脉冲宽度数显监测
  • Pulse width is numerically monitored
  • 通过工作状态监测指示灯可直观监测触发信号、输入、输出等实时状态
  • The working status monitoring indicator can directly monitor the trigger signal, input, output and other real-time status
  • 可通过前面板控制旋钮调节脉冲宽度
  • The pulse width can be adjusted by the front panel control knob
  • 可通过前面板控制旋钮调节功放增益
  • Power amplifier gain can be adjusted by front panel control knob
  • 前面板设置监测接口,可直接使用仪器监测射频信号和检波包络曲线
  • The front panel is equipped with monitoring interface, which can directly monitor rf signal and detection envelope curve
  • 标准19英寸机箱,内置风冷散热器
  • Standard 19-inch case with built-in air cooled radiator
  • 可配置LAN接口远程实时监测运行状态
  • Configurable LAN interface for remote real-time monitoring of running status

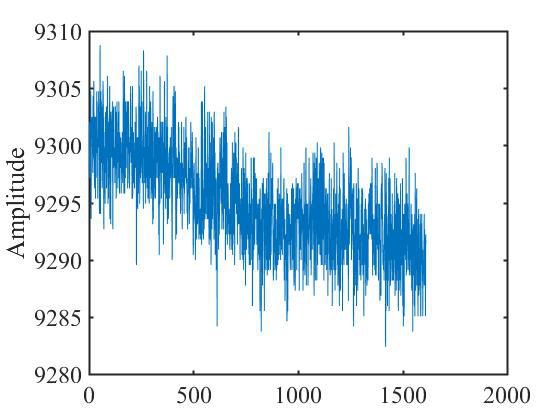

幅度稳定度 VS 时间测试曲线① Amplitude stability vs. time test curve ①

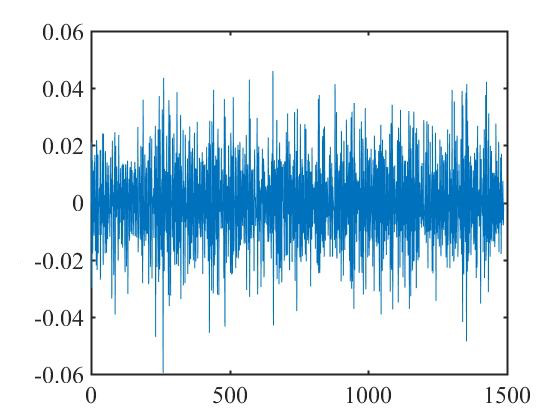

相位稳定度 VS 时间测试曲线② Phase stability vs. time testing curve ②















说明 Notes ①、②

图中幅度稳定度与相位稳定度测试数据来自上海交通大学低电平采集测试系统开环测试,功放的幅度、相位抖动附加值在低电平闭环环境会优于以上系统测试值。

Figure of amplitude stability and phase stability test data from Shanghai jiaotong university, low level open loop testing system, amplitude, phase jitter value added in the low level of the power amplifier closed-loop environment will be better than the above system test values.

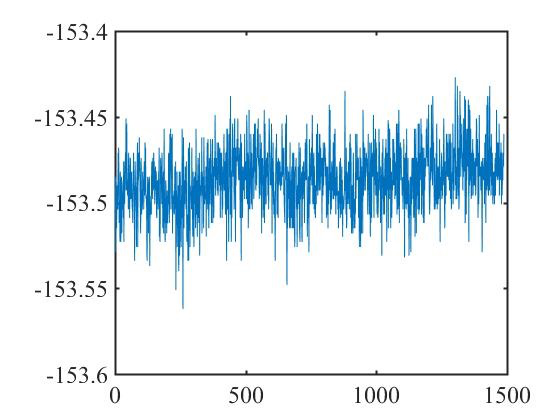

相位稳定度 VS 时间测试曲线④

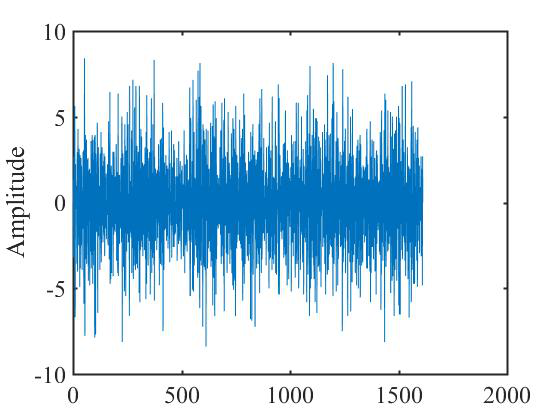

幅度稳定度 VS 时间测试曲线③















说明 Notes ③、④

图中幅度稳定度与相位稳定度测试数据来自上海交通大学低电平采集测试系统闭环测试,此测试值包含低电平系统自身抖动测量叠加因素。

Figure of amplitude stability and phase stability test data from Shanghai jiaotong university, low level closed loop test, the test system the test values jitter measurement superposition factors include low level system itself.








SPA60S-Aspa60s-a

S波段功率放大器 S Band Amplifier

工作频率 2.8~3.0 GHz

Working frequency: 2.8-3.0ghz

  • 适用于直线加速器微波功率源
    Suitable for linear accelerator microwave power source
  • 输出功率≥1500W
    Output power is greater than 1500W
  • 标准19英寸3U机箱
    Standard 19-inch 3U case
  • 供电电压 AC 220V
    Supply voltage AC 220V

SPA60S-A 典型指标 Specification

型号
Part Number
最低工作频率
FL(MHz)
最高工作频率
FU(MHz)
典型增益
Gain (dB)
输出功率
Psat
(dBm)
占空比脉宽射频输入动态范围
SPA60S-A280030006060.0≤10%≤25us15dB
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

SPA60S-A 电性能指标Electrical Specifications

技术参数Symbol单位Units典型值Typ
微波脉冲平顶宽度usec1.4 - 6usec可调(可定制25us)
射频功率输出PL(1dB)W1000
输出功率vs输入功率
动态范围
dB15
脉冲前沿ns<50
脉冲后沿ns<70
脉内平顶<0.2% (RMS)
脉内相移<1° (RMS)
微波脉冲前沿抖动ns<5
射频功率稳定度<0.04% (RMS)
相位稳定度<0.02°(RMS)
附加相位抖动fs<10
漏脉冲<1/106

spa600s-a前视图 spa600s-a后视图









相位稳定度与时间曲线

相位稳定度与时间曲线① Phase stability and time curve ①

幅度稳定度与时间曲线

幅度稳定度与时间曲线② Amplitude stability and time curve ②

spa60s-a包络脉冲平顶细节测试

包络脉冲平顶细节测试曲线 Envelope pulse flat-top detail test curve

说明 Notes ① ②

图中幅度稳定度与相位稳定度测试数据来自上海光源软X射线装置低电平采集测试系统测试,此测试值包含低电平系统自身抖动测量叠加因素。



Figure of amplitude stability and phase stability test data from Shanghai light soft X-ray device low-level acquisition test system test, the test values jitter measurement superposition factors include low level system itself.


SPA66-500

P波段功率放大器 P Band AmplifierSPA66-500

工作频率 0.5 GHz

Working frequency: 0.5 GHz

  • 可用于直线加速器次谐波腔
    It can be used in subharmonic cavity of linear accelerator
  • 输出功率可达4000W
    The output power can reach 4000W
  • 高稳定性
    High stability
  • 标准19英寸4U机箱
    Standard 19-inch 4U case

SPA66-500 典型指标

型号
Part Number
最低工作频率
FL(GHz)
最高工作频率
FU(GHz)
典型增益
Gain (dB)
输出功率
Psat
(W)
占空比脉宽射频输入动态范围
SPA66-5000.480.86664000≤10%≤100us20dB
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

SPA66-500电性能指标

技术参数Symbol单位Units典型值Typ
微波脉冲平顶宽度usec2~20μs usec可调
射频功率输出PL(1dB)W可定制至5000
输出功率vs输入功率
动态范围
dB15
脉冲前沿usec0.05
脉冲后沿usec0.1
脉内平顶<0.2%(RMS)
脉内相移°<1° (RMS)
相位调节对幅度稳定性dBc<0.2
微波脉冲前沿抖动ns<5
射频功率稳定度<0.1%
相位稳定度<0.05°(RMS)
漏脉冲<1/10^6



p波段功率放大器  P Band Amplifier

工作频率 0.5 GHz

Working frequency: 0.5 GHz

  • 可用于直线加速器次谐波腔
  • It can be used in subharmonic cavity of linear accelerator
  • 输出功率可达4000W
  • The output power can reach 4000W
  • 高稳定性
  • High stability
  • 标准19英寸3U机箱
  • Standard 19-inch 3U case

SPA57-500典型指标

型号
Part Number
最低工作频率
FL(GHz)
最高 工作频率
FU(GHz)
典型增益
Gain (dB)
输出功率
Psat
(W)
占空比脉宽射频输入动态范围
SPA57-5000.480.8657500≤10%≤100us20dB
SPA62-5000.480.86632000≤10%≤100us20dB
说明 Notes
以上指标为典型值,此系列产品部分参数可定制
The above indicators are typical values, and some parameters of this series of products can be customized

电性能指标Electrical Specifications

技术参数Symbol单位Units典型值Typ
微波脉冲平顶宽度usec2~20μs usec可调
射频功率输出PL(1dB)W可定制至2000
输出功率vs输入功率
动态范围
dB15
脉冲前沿usec0.05
脉冲后沿usec0.1
脉内平顶<0.2%(RMS)
脉内相移°<1° (RMS)
相位调节对幅度稳定性dBc<0.2
微波脉冲前沿抖动ns<5
射频功率稳定度<0.1%
相位稳定度<0.05°(RMS)
漏脉冲<1/106



57-500前视图 57-500后视图







  • 输出功率数显功能
  • Output power digital display function
  • 通过工作状态监测指示灯可直观监测触发信号、输入、输出等实时状态
  • The working status monitoring indicator can directly monitor the trigger signal, input, output and other real-time status
  • 可通过前面板旋钮调节脉冲宽度
  • Pulse width can be adjusted by front panel knob
  • 前面板设置监测接口,可直接使用仪器监测射频信号和检波包络曲线
  • The front panel is equipped with monitoring interface, which can directly monitor rf signal and detection envelope curve
  • 可内置微波信号源
  • Microwave signal source can be built in
  • 可内置自触发脉冲发生器
  • Self – triggering pulse generator can be built in
  • 可配置远程控制接口
  • Configurable remote control interface
  • 标准19英寸机箱,内置风冷散热器
  • Standard 19-inch case with built-in air cooled radiator
57-500输出信号包络曲线

输出信号包络测试曲线 Output signal envelope test curve

57-500输出输入功率曲线

输出功率VS输入功率曲线① Output power vs. input power curve ①











说明 Notes ①

图中测试数据来自SPA62-500S型功率放大器,该系列放大器参数可根据需求定制

The test data in the figure come from the SPA62-500S power amplifier, whose parameters can be customized according to the requirements
